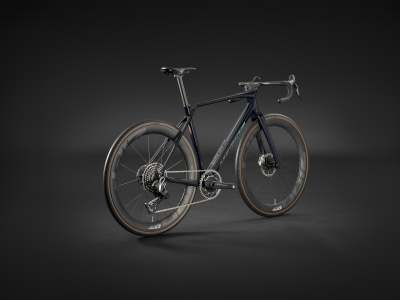

Merida Mission 10K
Model: Mission 10K
Model year: 2026
Category: Gravel
Frame material: Carbon
Weight: 7.6 kg
Wheel size: 28"/622mm
Test result
| Property | Weighting | Grade |
|---|---|---|
| Lab | 75% | 2,1 |
| Complete bike weight | 25% | 1,3 |
| Rear comfort | 20% | 2,7 |
| Front comfort | 10% | 3,0 |
| Acceleration | 10% | 2,7 |
| Ride stability | 10% | 1,3 |
| Equipment | 25% | 1,5 |
| Brakes | 5% | 1,0 |
| Shifting | 5% | 1,5 |
| Tires | 5% | 2,0 |
| Paint | 5% | 1,0 |
| Maintenance / Adjustments | 5% | 2,0 |
| Final grade | 1,9 |
Strengths and weaknesses
| Complete bike weight | 7600 g |
| Ride stability | 8,68 N/mm |
| Rear comfort | 162,27 N/mm |
| Front comfort | 105,72 N/mm |
| Sprint / BB stiffness | 49,95 N/mm |
Geometry - measurements overview
H
F
G
A
E
D
B
C
J
I
K
L
| A - Head tube length | 137 mm |
| B - Seat tube length | 505 mm |
| C - Wheelbase | 1010 mm |
| D - Top tube length | 560 mm |
| E - Stack | 584 mm |
| F - Stack+ | 642 mm |
| G - Reach | 384 mm |
| H - Reach+ | 570 mm |
| I - Seat angle | 73.5 ° |
| J - Head angle | 72 ° |
| K - STR | 1.52 |
| L - STR+ | 1.13 |
Tests & Reviews
Equipment
| Front brake disc | 160 |
| Rear brake disc | 160 |
| Front brake lever | SRAM Red AXS XPLR |
| Rear brake lever | SRAM Red AXS XPLR |
| Drivetrain | SRAM Red AXS XPLR |
| Shift levers | SRAM Red AXS XPLR |
| Number of gears | 13 |
| Sprocket | SRAM CS-XG 1391 |
| Wheelset | Zipp 303 XPLR SW |
| Wheel size | 28"/622mm |
| Front tire | Good Year XPLR Slick 40-622 |
| Rear tire | Good Year XPLR Slick 40-622 |
